Graphics tablet:
This tool is still under development and unfortunately still has a few weaknesses.

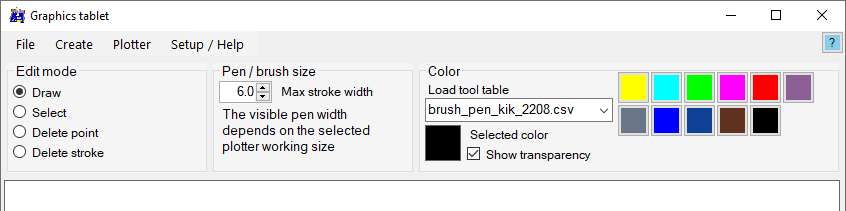

Menu File:
- New (Clear canvas) - delete all strokes
- Open drawing
- Save drawing in ISF format (Ink Serialized Format)
Menu Create:

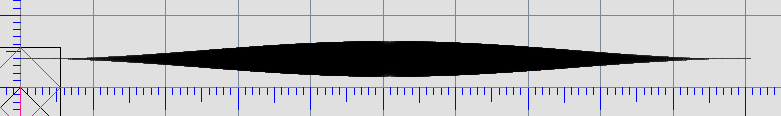

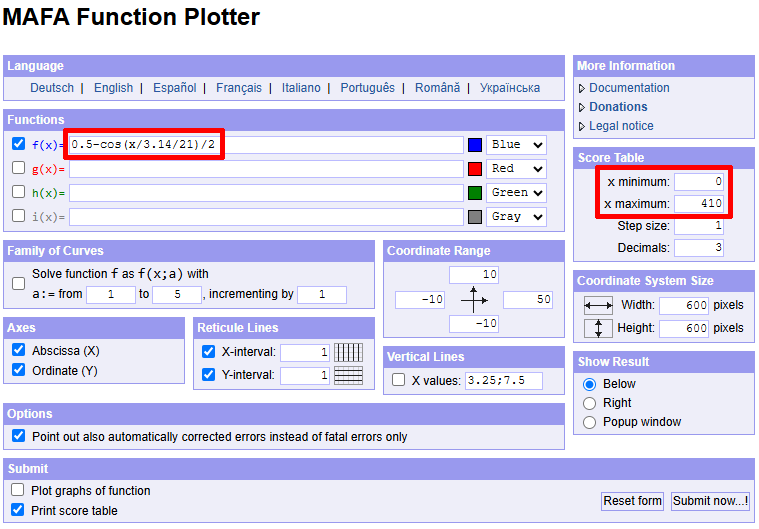

- Import xyz data from clipoard and display on canvas, (tab as delimeter, z between 0...1 = 0% -100% pressure)
- Import whole drawing on canvas to 2D-view as GCode (should be renamed)
Menu Plotter
- Live update send stylus (or mouse) position and pressure to the plotter

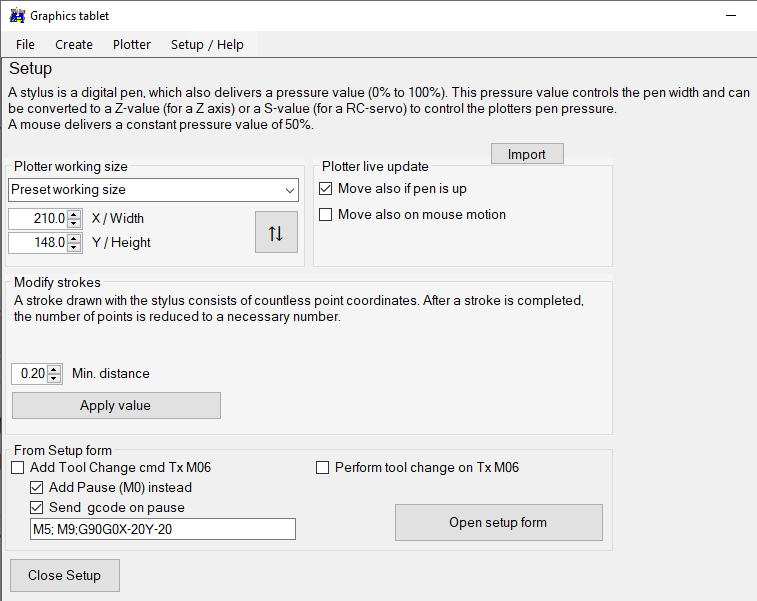

Menu Setup / Help
- Configure the program behavior
